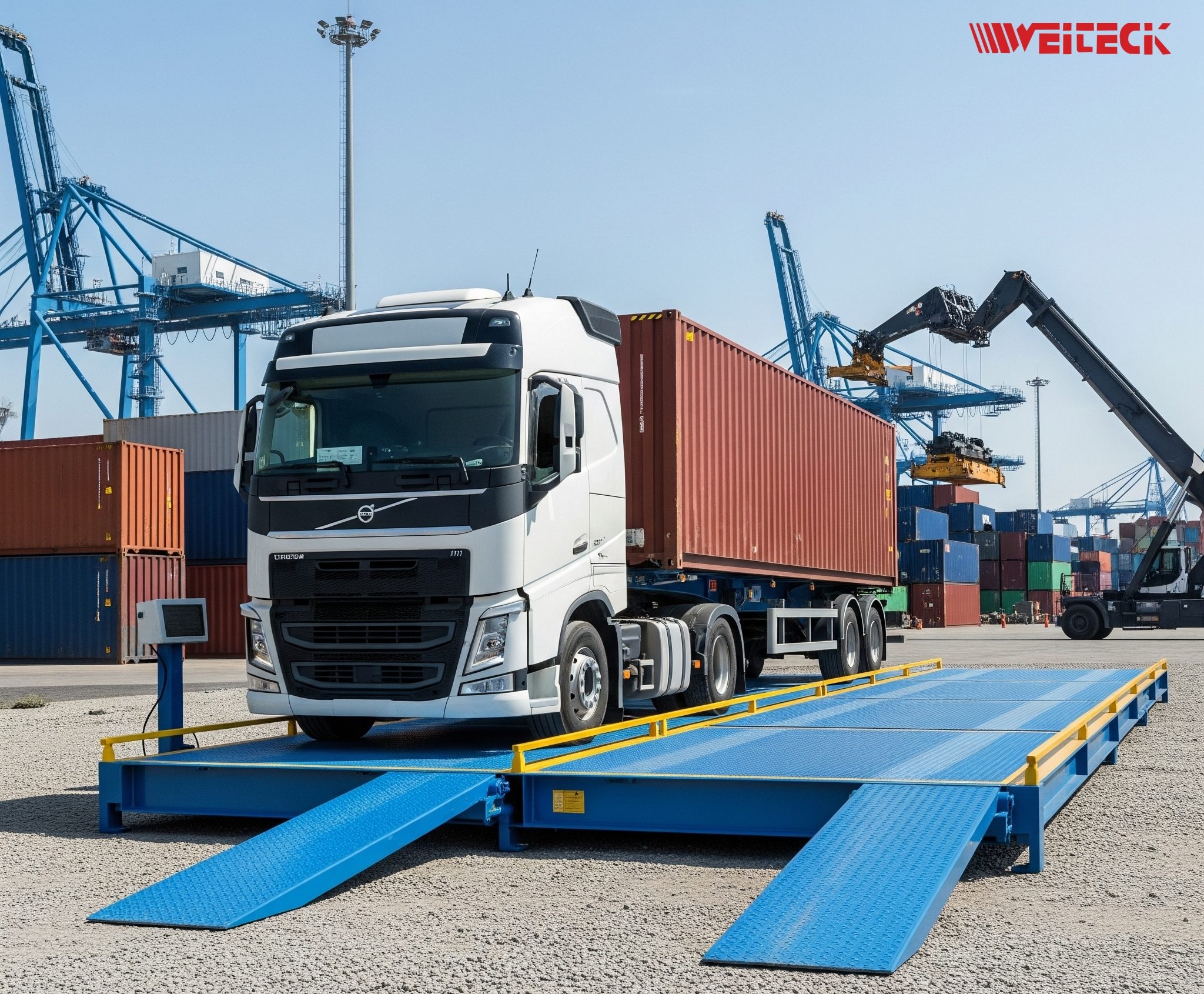

This weighbridges are designed with a view of easily movability & Portability.
A second generation of digital Series weighbridges this almost portable weighbridge is constructed from high-strength mild steel structure fabricated in adequate sectional length/s connecting few sections together create different sizes up to 24 m and capacities up to 200 MT on all models.
This is a boon to the Road Construction / mining /EPC sector where frequent relocation is a common feature and Foundation costs are minimal in comparison to the conventional Pit types/ surface mounted foundations comprise flat solid raft with concrete approach ramps. The complete weighbridge can be disassembled & re-assembled within few hours making installation a light hearted affair.
A low profile weighbridge that is versatile and easy to install, the structure is almost identical as the former. But because it is elevated, maintenance works are far easier. However the land required for this is more as the approach ramps on both ends are a must.
Model No. | Capacity | Accuracy | Platform size (mtr) |
WWSWB 25MT | 25MT | 5 kg | 7.5 X 3; 9 X 3 |
WWSWB 30MT | 30MT | 5 kg | 7.5 X 3; 9 X 3 |
WWSWB 40MT | 40MT | 5 kg | 7.5 X 3; 9 X 3; 12 X 3 |
WWSWB 50MT | 50MT | 5 kg | 7.5 X 3; 9 X 3; 12 X 3 |
WWSWB 60MT | 60MT | 10 kg | 12 X 3; 15 X 3 |
WWSWB 80MT | 80MT | 10 kg | 16 X 3; 18 X 3 |
WWSWB 100MT | 100MT | 10 kg | 16 X 3; 18 X 3; 20 X 3; 24 X 3 |
WWSWB 150MT | 150MT | 20 kg | 18 X 3; 20 X 3; 24 X 3 |
Customize | 60MT to 400MT | As Per W & M Dept.Standard | 10 X 5.5; 18 X 4.5; 17.5 X 3.5 |
Memory | 8k + 128 data storage of 3000 operations with battery back up |
Printer Port | Centronics compatible parallel port |
Serial Port | 1 no. RS 232 C type port is available for computer interface |
Display | 20 character X 2 line LCD display with back light & LED display |
Jumbo Display | 7 segment, 6 digit (60mm height), red LED |
Consolidated Reports | Date wise, customer wise, commodity, consignee wise |
Input Voltage | 200V – 250V AC @ 50Hz |
Power Consumption | 10VA(approx.) |
Environmental Operating temperature | 10 to 55 Celsius |
Humidity | 0 to 95% noncondensing |
USB Port | For data extracting from eprom |
Capacity |
30 MT |
Excitation Voltage |
10VDC-MAX 15VDC10-15 VDC |
Nominal Output |
2.0 mV/V |
Non-Linearity |
<+/-0.017% FSO |
Hysteresis |
<+/-0.02% FSO |
Non-Repeatability |
<+/-0.01% FSO |
CREEP (30 minutes) |
<+/-0.02% FSO |
Input Resistance |
770+/-20 Ohms |
Output Resistance |
700+/-10 Ohms |
Insulation Resistance |
>5000 Mega Ohms |
Safe Overload |
150% Rated Cap. |
Ultimate Overload |
300% Rated Cap. |
Temperature (Compensated) |
-10 – +40 C |
Temperature (Operating) |
-35 – +65 C |
Construction Material |
Alloy steel |
Accuracy class |
OIML R60 C3 |
Load cell intervals |
3000 |
Ratio of min. LC verification intervals Y=Emax./Vmin. |
7500-15000 |
Combined error |
<+/-0.017% FSO |
Minimum load |
0 Ton |
Zero Balance |
<+/-1.5 % FSO |
Protection class |
IP-68 |
Cable length |
13 mtr |
Dimension |
240 x 135 x 225 mm |
Cable type |
4 core shielded, 5.5mm. |
We offer a wide range of industrial weighing systems and solutions, backed by an extensive service network across the whole of India.
